Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery

Китай Dongguan Ziitek Electronic Materials & Technology Ltd. Сертификаты
Китай Dongguan Ziitek Electronic Materials & Technology Ltd. Сертификаты
Термальная проводная пусковая площадка смотрящ и работающ очень хорошее. Мы не имеем никакую потребность для другой термальной проводной пусковой площадки теперь!

—— Питер Гоольсбы

Я объединил с Зиитек на 2 лет, они обеспечили высококачественные термальные проводные материалы, и доставка во времени, рекомендует их материалы фазового перехода

—— Антонелло Сау

Хорошее качество, хорошее обслуживание. Ваша команда всегда дает нам помощь и разрешать, надежда мы будем хорошим всем временем партнера!

—— Крис Рогерс

Оставьте нам сообщение

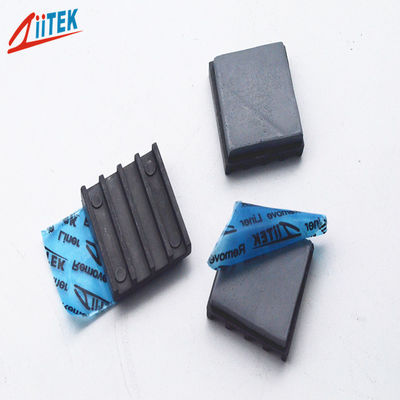

Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery

Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery

Большие изображения :  Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery

Подробная информация о продукте:
Место происхождения: КИТАЙ
Фирменное наименование: ZIITEK
Сертификация: UL and RoHs
Номер модели: Серия TIF100-02F
Оплата и доставка Условия:
Количество мин заказа: 1000 шт
Цена: Подлежит обсуждению
Упаковывая детали: 1000 шт./Сумка
Время доставки: 3-5 рабочих дней
Поставка способности: 100000 шт/день
Подробное описание продукта
Название продуктов: Заводская цена горячая продажа теплопроводящая кремниевая падция 1,5 Вт 0,5 ~ 5,0 мм наполнителя нап Твердость: 60 берег 00
Приложение: Аккумулятор автомобиля и источник питания Толщина: 0.020" ((0.5 мм) ~0.200" ((5.0 мм)
Теплопроводность: 1,5 Вт/м-К temp непрерывного использования: -45 до 200°C
Цвет: Серый Ключевые слова: термальная пусковая площадка вспомогательная РЛС
Образец: Образец бесплатно

Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery



The TIF®100-02F Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF®100-02F is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> Easy release construction
> Electrically isolating
> High durability

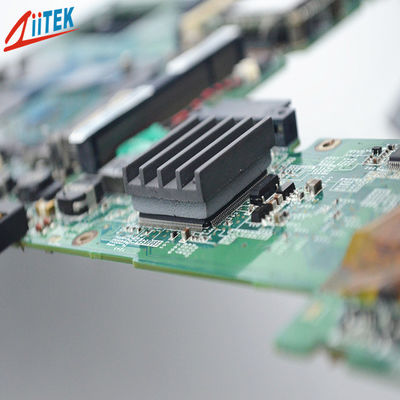

Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware

> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Display card

> Power supply
> Heat pipe thermal solutions
> Memory Modules

Typical Properties of TIF®100-02F Series
Property Value Test method
Color Gray ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 60 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.0 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



Factory Size:8000~10,000 square meters

Factory Country/Region:No.12, Xiju Road, Hengli Township, Dongguan City, Guangdong Province, P.R.China

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
